Beyma SM112/N - 12" 400W 8 Ohm
SPL: 95.9dB Fs: 40Hz Xmax: 7.3mm

Product Code: BMASM112N | Brand: Beyma


£95.83
£79.86 ex VAT
Qty:

2-3 £94.87 ea.4-7 £93.92 ea.8+ £92.96 ea.
Login to see JAM Club pricing
Not a member? Join Now
£6.38 DELIVERY to mainland UK

Beyma SM112/N - 12" 400W 8 Ohm

The design concept of this low frequency transducer arises from the need of achieve a more resistant loudspeaker that matches the more and more power given by ultimate amplification systems. In order to accomplish that, almost every component of the speaker has been reconsidered. The SM-112/N incorporates a 3" voice coil made with high quality materials: copper round wire with high temperature bonding strength and apical former. Moreover, it features a powerful magnet system with rear air ventilation. All these facts result in a 12" driver with extended and smooth low-mid frequency response, reduced harmonic distortion, good efficiency and excellent power handling (400W AES). The SM-112/N is specially recommended for woofer applications.

TECHNICAL SPECIFICATIONS:

  • Nominal diameter 300 mm 12 in
  • Nominal impedance 8 ohm
  • Minimum impedance 7 ohm
  • Power capacity 400 W AES
  • Program power 800 W
  • Sensitivity 97 dB 1 W @ 1 m @ 2Π
  • Frequency range 40-4000 Hz
  • Recommended enclosure volume 30 / 100 l 1.06 / 3.53 ft.³
  • Voice coil diameter 77 mm 3 in
  • BL factor 17 N / A
  • Moving mass 0.058 Kg
  • Winding length 17.5 mm
  • Air gap height 7 mm
  • Xdamage pp 30 mm


THIELE SMALL PARAMETERS:

  • Fs 40 Hz
  • Re 6.2 ohm
  • Qms 8
  • Qes 0.31
  • Qts 0.3
  • Vas 117.3 l
  • Cms 273 µm / N
  • Rms 1.8 kg / s
  • Efficiency % 2.1
  • Sd 0.055 sq m
  • Xmax 7.25 mm
  • Vd 398 cu cm
  • Le @1 kHz 1.2 mH


CONSTRUCTIVE DETAILS:

  • Net weight 5.65 kg 12.45 lb
  • Total weight 6 kg 13.2 lb
  • Magnet Ferrite

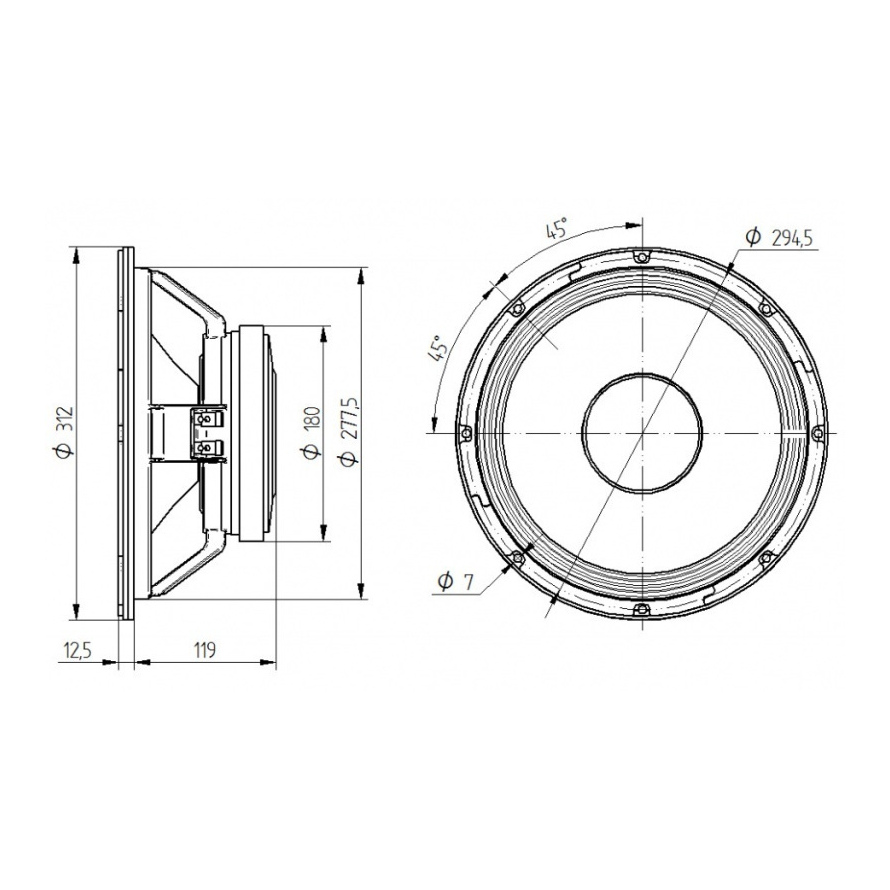

Mounting Information


  • Overall diameter - 312 mm 12.3 in
  • Bolt circle diameter - 294.5 mm 11.6 in
  • Baffle cutout diameter: -
  • - Front mount - 277.5 mm 10.9 in
  • Depth - 131.5 mm 5.17 in
  • Volume displaced by driver - 4.5 l 0.16 ft3
  • Net weight - 5.65 kg 12.45 lb
  • Shipping weight - 6 kg 13.23 lb

Beyma SM112N 12" 400W 8 Ohm
Pack size: 2 units @ £194.32 incl VAT - Equivalent price: £97.16 incl VAT per item

Beyma SM112N 12 inch 400W 8 Ohm - currently in stock3 IN STOCK
Product Code: BMASM112N_2PK
