Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack
Affordable speakers from top UK brand

Product Code: FANSOV12-300_4PK | Brand:
£273.91
£228.26 ex VAT
Qty:

Login to see JAM Club pricing
Not a member? Join Now
NONE IN STOCK - OUT OF STOCK
FREE DELIVERY for mainland UK

Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack

Medium power 12" driver for use as bass-mid woofer in medium sized vented enclosures or as a mid in small sealed boxes. Usable frequency range: 45Hz - 4.5kHz.

The all new FANE Sovereign Series comprises fifteen cone drivers designed for a broad spectrum of sound reinforcement situations. Midrange, fullrange, bass-mid and dedicated bass applications are comprehensively covered.
Featuring heavy duty FANE pressed steel chassis providing rugged durability and consistant performace in even the most demanding of environments, glass fibre voice coils capable of delivering outstanding power handling capabilities and carefully selected cone materials for smooth tonal characteristics and extended bass response, the FANE Sovereign represents an exciting and versatile answer to the demands of a varied and demanding range of audio applications.



THIELE SMALL PARAMETERS:

  • FS Hz 46 Hz
  • RE Ohms 5.75 Ohms
  • Qms 5.2
  • Qes 0.375
  • Qts 0.35
  • Vas Ltr 114
  • Vd litres 0.24
  • CMS (mm/N) 0.278
  • BL T/m 14.8
  • Mms (grms) 43
  • Xmax (mm) 4.5
  • Sd (cm2) 540
  • Efficiency % 2.89
  • Le (1kHz) 1.64 mH


ELECTRO ACOUSTIC SPECIFICATIONS:

  • Nominal Chassis Diameter 12'
  • Impedance 8 Ohms
  • Power Handling 300 w (EIA 426A)
  • Peak Power (6dB Crest Factor) 1200 w (EIA 426A)
  • Usable Frequency Range -6dB 45 Hz - 4.5 kHz
  • Sensitivity (1 w - 1 m) 97.5 dB
  • Moving Mass inc. Air Load 43 grams
  • Minimum Impedance Zmin 6.84 Ohm
  • Effective Piston Diameter 10.31' / 262 mm
  • Peak Displacement Volume of Cone Vd 0.24 litres
  • Magnet Weight 56 oz
  • Magnetic Gap Depth 0.39" / 10 mm
  • Flux Density 1.1 Tesla
  • Coil Winding Height 0.70" / 18 mm
  • Voice Coil Diameter 2.5" / 63.5 mm


MATERIALS OF CONSTRUCTION:

  • Former Material Glass Fibre
  • Voice Coil Copper
  • Magnet Material Ferrite
  • Chassis Steel
  • Cone Paper
  • Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
  • Dust Dome Paper
  • Connectors Solder Tag
  • Polarity Positive Voltage at Red
  • Terminal Causes Forward Motion of Cone


MOUNTING / SHIPPING INFORMATION:

  • Overall Diameter 12.00' / 304.8 mm
  • Flange Height 0.27' / 7 mm
  • Baffle Hole Diameter F/M 11.25' / 286 mm
  • Baffle Hole Diameter R/M 11.25' / 286 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 8x 7.0 mm on 11.75" / 298 mm PCD
  • Depth 5.43' / 138 mm
  • Weight 11.02 lb / 5.0 kg
  • Recommended Enclosure Volume 1.05 - 2.64 cu ft / 30 -75 litres
  • Shipping Weight 12.89 lb / 5.85 kg
  • Packing Carton Dimensions 165 x 330 x 330 mm


Detailed specifications unavailable, please EMAIL the sales office for additional information.

Fane Sovereign 12-300 12" 300W 8 Ohm Twin Pack
Pack size: 2 units @ £138.36 incl VAT - Equivalent price: £69.18 incl VAT per item

Please callOUT OF STOCK
Product Code: FANSOV12-300_2PK
Qty:


Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack
Pack size: 4 units @ £273.91 incl VAT - Equivalent price: £68.48 incl VAT per item

Please callOUT OF STOCK
Product Code: FANSOV12-300_4PK
Qty:

Other Fane products similar to Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack:
Fane Sovereign 12-500LF - 12" 500W 8 Ohm **DEMO STOCK**

£72.77 inc VAT
(£60.64 ex VAT)

Fane Sovereign 12-500LF 4 Ohm - 12" 500W 4 Ohm

£72.77 inc VAT
(£60.64 ex VAT)

Fane Sovereign Pro 12-350N - 12" 350W 8 Ohm

£136.26 inc VAT
(£113.55 ex VAT)

Fane Colossus 12BMN - 12" 450W 8 Ohm

£221.59 inc VAT
(£184.66 ex VAT)

We will match any genuine price for Fane Sovereign 12-300 12 inch 300W 8 Ohm Four Pack
If you find 'Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack' cheaper elsewhere, let us know and we'll try to match or beat the price! click for Price Match info for Fane Sovereign 12-300 12 inch 300W 8 Ohm Four Pack Price Match Terms and Conditions
UK & ROI
Delivery Info for Fane Sovereign 12-300 12 inch 300W 8 Ohm Four Pack  to locations within the United Kingdom and Ireland
EUROPE
Delivery Info for Fane Sovereign 12-300 12 inch 300W 8 Ohm Four Pack  to locations in Europe

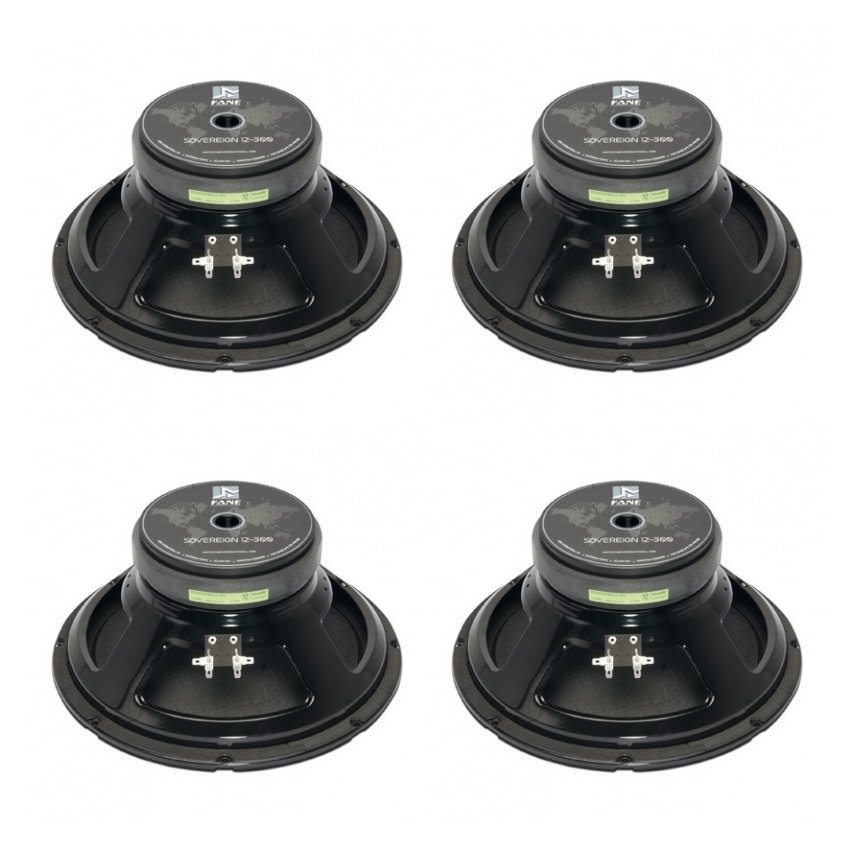

Fane Sovereign 12-300 12" 300W 8 Ohm Four Pack is a package consisting of the following items:
4 x Fane Sovereign 12-300 - 12" 300W 8 Ohm
SPL: 97.4dB Fs: 46Hz Xmax: 4.5mm
