Eminence Legend BP102 10" Bass Guitar Speaker - 200W 8 Ohm *** B-GRADE STOCK ***
item Condition: B Grade - Very Good Condition - Item may look slightly used.

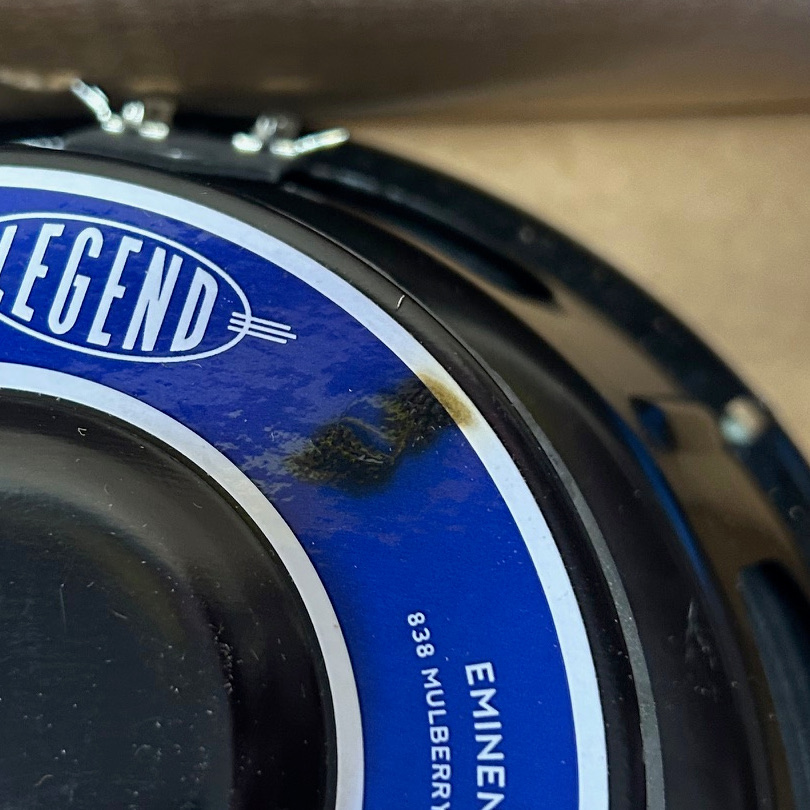

Item has small cosmetic burn mark to rear
Packaging: Original box - box may be marked, damaged or worn.
Full Manufacturer's 12 Month Warranty.
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.
Item has small cosmetic burn mark to rear
Packaging: Original box - box may be marked, damaged or worn.
Full Manufacturer's 12 Month Warranty.
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.
This product currently has limited availability, the stock amount showing is all that is available. If you try to order a quantity greater than what is showing in stock we will not be able to fulfill your order.
Specification:
- Nominal Basket Diameter 10", 254mm
- Nominal Impedance* 8 ohms
- Power Rating**
- Watts 200W
- Music Program 400W
- Resonance 35Hz
- Usable Frequency Range 40Hz - 2kHz
- Sensitivity*** 91.8dB
- Magnet Weight 38 oz.
- Gap Height 0.31", 7.9mm
- Voice Coil Diameter 2", 51mm
Thiele & Small Parameters:
- Resonant Frequency (fs) 35Hz
- DC Resistance (Re) 5.59
- Coil Inductance (Le) 0.83mH
- Mechanical Q (Qms) 5.36
- Electromagnetic Q (Qes) 0.47
- Total Q (Qts) 0.43
- Compliance Equivalent Volume (Vas) 91.2 liters / 3.2 cu.ft.
- Peak Diaphragm Displacement Volume (Vd) 207cc
- Mechanical Compliance of Suspension (Cms) 0.54mm/N
- BL Product (BL) 10 T-M
- Diaphragm Mass Inc. Airload (MMs) 38 grams
- Efficiency Bandwidth Product (EBP) 75
- Maximum Linear Excursion (Xmax) 6.2mm
- Surface Area of Cone (Sd) 334.5 cm2
- Maximum Mechanical Limit (Xlim) 10mm
Mounting Information:
- Recommended Enclosure Volume
- Sealed Acceptable
- Vented Acceptable
- Driver Volume Displaced 71.3 cu.in. / 1.17 litres
- Overall Diameter 10.08", 256.1mm
- Baffle Hole Diameter 9.18", 233.2mm
- Front Sealing Gasket Fitted as standard
- Rear Sealing Gasket Fitted as standard
- Mounting Holes Diameter 0.25", 6.4mm
- Mounting Holes B.C.D. 9.66", 245.4mm
- Depth 4.25", 108mm
- Net Weight 8.9 lbs, 4 kg
- Shipping Weight 9.1 lbs, 4.1 kgs
Materials of Construction:
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Ferrite magnet
- Core Details Non-vented core
- Basket Materials Pressed steel basket
- Cone Composition Paper Cone
- Cone Edge Composition Cloth cone edge
- Dust Cap Composition Zurette dust cap
