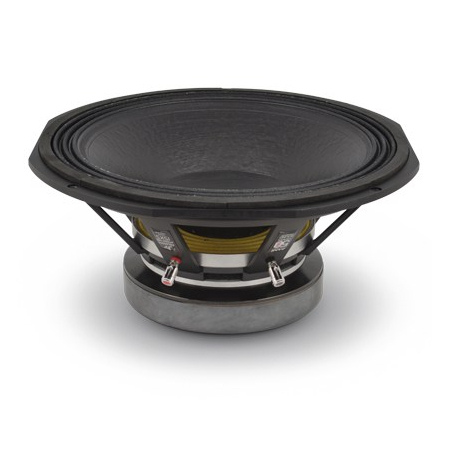

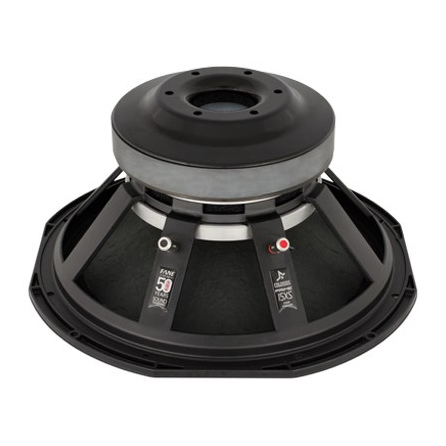

Fane Colossus Prime 15XS - 15" 1200W 8 Ohm
SPL: 98.0dB Fs: 36Hz Xmax: 12.0mm

Product Code: FANCOL15XS | Brand: Fane
Fane Colossus Prime 15XS - 15 inch 1200W 8 Ohm

Fane Colossus Prime 15XS - 15 inch 1200W 8 Ohm Fane Colossus Prime 15XS - 15 inch 1200W 8 Ohm Fane Colossus Prime 15XS - 15 inch 1200W 8 Ohm
£278.45
£232.04 ex VAT
2-3 £275.66 ea.4-7 £272.88 ea.8+ £270.09 ea.
Login to see JAM Club pricing
Not a member? Join Now
£8.10 DELIVERY to mainland UK.
Fane Colossus Prime 15XS - 15" 1200W 8 Ohm

The Prime 15XS is intended for use as a high-output bass driver in multi way systems and features a 4 inch `sandwich' (inside and outside windings) voice coil, immersed in a symmetric magnetic field yielding increased linearity and lower distortion. This, coupled with laminated silicone suspensions, a large Xmax of 12mm with peak to peak travel of 60mm, ensures fast accurate bass at high levels of excursion. The cone membrane, manufactured from polycellulose, is much stronger and more durable than conventional paper pulp alternatives. This allows the driver to combine high-sensitivity with the structural integrity required to produce undistorted low frequencies at extreme sound pressure levels. The driver handles 1000 Watts (A.E.S.) continuous and can cope with peaks in excess of 4800 Watts. This is due to advanced thermal management in the form of vented die-cast chassis and increased motor system venting. These measures effectively remove heat from the voice coil, resulting in extremely low-power compression. The Prime 15XS exhibits 98 dB sensitivity and can deliver bass down to 29 Hz (-6 dB) in a 200 litre ported enclosure.


  • 2000 W Program Power.
  • 98 dB Sensitivity (1W/1m).
  • High grade Y35 ferrite magnet motor structure with Low interference flux path.
  • Vented chassis and motor design provides extremely low power compression.
  • Aluminium demodulation ring.
  • Dual silicone laminated suspension system combined with optimised software materials offers increased linearity
  • Fast, accurate and undistorted bass reproduction at extreme SPL.
  • 12mm Xmax with 64 mm peak-to-peak travel.
  • Fibre loaded, UK manufactured cone offers increased strength, durability and performance.
  • Ideal for bass reflex and scoop designs from 125-400 Litres.
  • Also performs well in appropriately designed horn loaded systems.
  • 4-inch Inside/ outside windings copper voice coil.

This product has been discontinued - please do not try to order this item we will not be able to supply it - the product details are here for reference only. Please contact a member of staff, and we may be able to find an equivalent product for you.
Specifications:

  • Nominal Chassis Diameter: 15 "
  • Impedance: 8 Ohms
  • Power Handling: Power Handling 1000w (AES)
  • Peak Power (6dB Crest Factor): 4000 w (AES)
  • Usable Frequency Range -6dB: 30 Hz - 500 Hz
  • Sensitivity (1 w - 1 m): 98 dB
  • Moving Mass inc. Air Load: 149.7 grams
  • Minimum Impedance Zmin: 6.84 Ohms
  • Effective Piston Diameter: 392 mm
  • Peak Displacement Volume of Cone Vd: 3.247 litres
  • Magnet Weight: 120 oz
  • Magnetic Gap Depth: 11 mm
  • Flux Density: 1.1 Tesla
  • Coil Winding Height: 30 mm
  • Voice Coil Diameter: 101.6 mm

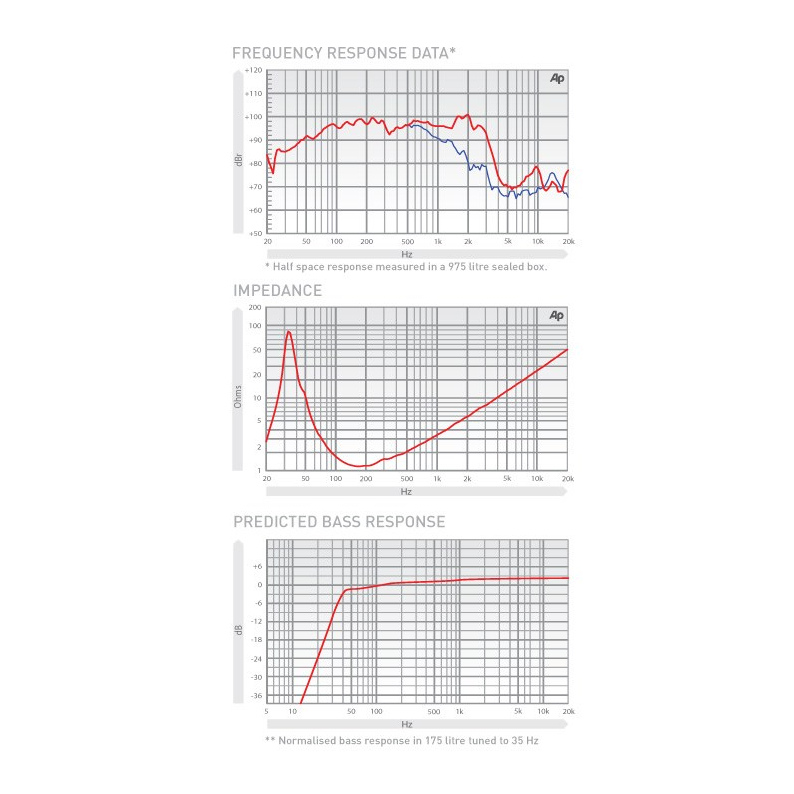

Thiele Small Parameters:

  • FS Hz: 36.3 Hz
  • RE Ohms: 5.2 Ohms
  • Qms: 7.7
  • Qes:0.32
  • Qts: 0.31
  • Vas Ltr: 149.7
  • Vd litres: 1.01
  • CMS (mm/N): 0.147
  • BL T/m: 22.1
  • Mms (grms): 133
  • Xmax (mm) : 12
  • Sd (cm2): 855
  • Efficiency %: 2.137
  • Le (1k Hz): 1.93 mH


Mounting and Shipping Information:

  • Overall Diameter: 406.4 mm
  • Width Across Flats: 387 mm
  • Flange Height: 7.8 mm
  • Baffle Hole Diameter F/M: 352 mm
  • Baffle Hole Diameter R/M: 355.6 mm
  • Gasket Supplied: Front & Rear
  • Fixing Holes: 4x 7.1 mm diam on 393.7 PCD / 8x 7.1 diam on 370 PCD
  • Depth: 198.7mm
  • Weight: 12.7kg
  • Recommended Enclosure Volume; 70 - 125 litres
  • Shipping Weight: 13.8 kg
  • Packing Carton Dimensions: 415 x 415 x 250 mm


Materials of Constructions:

  • Former Material: Glass Fibre
  • Voice Coil Diameter: Copper "sandwich" inside outside windings
  • Magnet Material: Ferrite
  • Chassis: Die-cast Aluminium
  • Cone: Curvilinear polycellulose
  • Surround / Edge Termination: Straight polycellulose Ribbed Cone
  • Dust Dome: Solid Paper (Inverted)
  • Connectors: Push-button Spring Terminals
  • Polarity: Positive Voltage at Red Terminal Causes Forward Motion of Cone
